ServiceNow Configuration for Squid

This guide covers ServiceNow platform settings that affect Squid API performance. These settings require ServiceNow administrator access.

For background on why these settings matter, see API Throughput. For client-side configuration, see API Client Configuration.

Transaction Quota Rules

Not a throughput restriction

Transaction quotas limit individual request duration, not concurrent request capacity. However, this is often the first issue encountered when deploying Squid—queries get killed before they complete.

Transaction quota rules limit how long API requests can run before being cancelled. This is critical for Squid—queries on large datasets routinely take 5-15 minutes, far exceeding default limits.

The Problem

The REST and JSON Catch All quota rule applies to Squid API requests. Its default limit of 300 seconds (5 minutes) is insufficient for large datasets—Squid queries routinely take 10-15 minutes.

When a transaction exceeds its quota, ServiceNow cancels it with: Transaction cancelled: maximum execution time exceeded. The response JSON will be truncated or empty.

Recommended Configuration

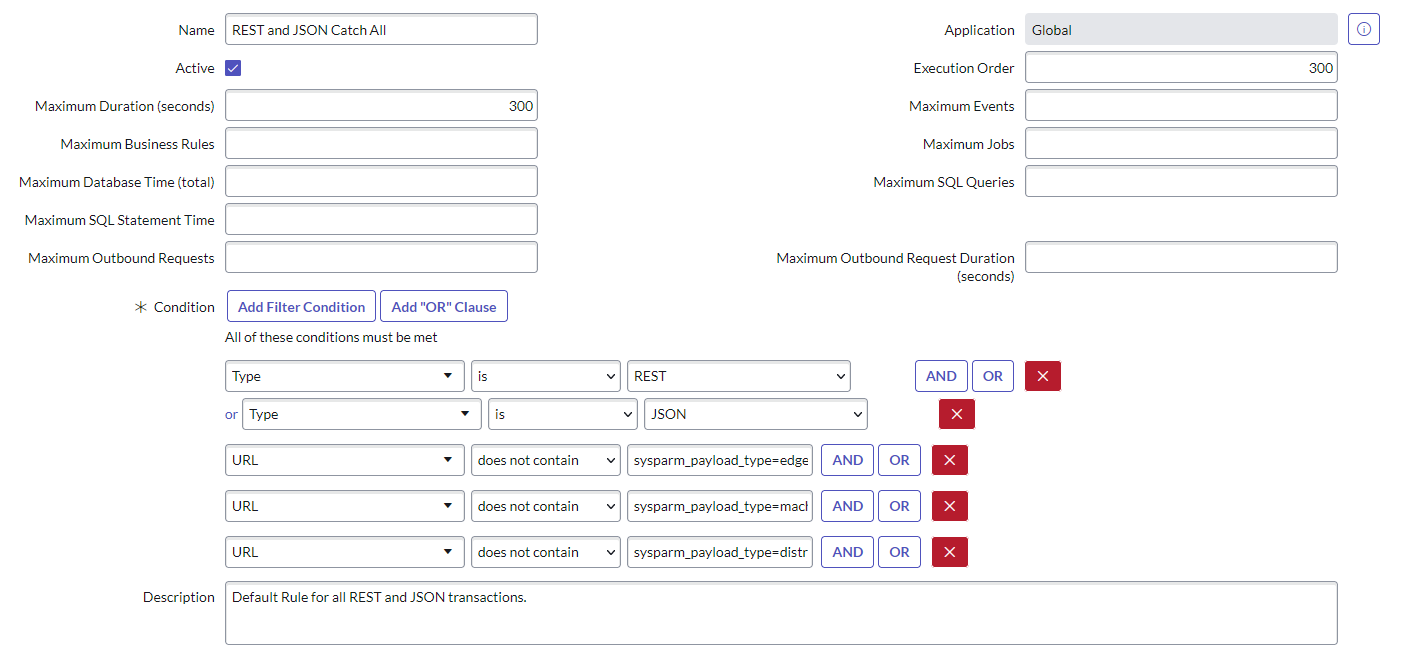

Navigate to System Definition → Transaction Quota Rules and locate the "REST and JSON Catch All" rule:

Field	Default	Recommended for Squid
Maximum Duration (seconds)	300	900 (15 minutes)

For very large datasets, consider 1800 seconds (30 minutes).

Rule evaluation order

Multiple quota rules can match a single request. ServiceNow evaluates all matching rules and applies the most restrictive limit. Ensure no other rules impose shorter limits on the Squid API path (/api/x_a46gh_squidx/*).

Creating a Squid-Specific Rule

For precise control, create a dedicated quota rule for Squid:

1. Navigate to System Definition → Transaction Quota Rules
2. Click New
3. Configure:

Field	Value
Name	Squid API request timeout
Active	true
REST	true
URL contains string	/api/x_a46gh_squidx/
Maximum duration	900 (or higher)
Order	50 (lower than catch-all rules)

See ServiceNow KB0866547 for additional guidance.

Session Timeout Configuration

ServiceNow maintains separate timeout settings for integration sessions versus UI sessions. Proper configuration prevents session accumulation while allowing reasonable session lifetimes.

Relevant System Properties

Property	Purpose	Default
glide.ui.session_timeout	UI session inactive timeout	30 minutes
glide.integration.session_timeout	Integration session inactive timeout	1-5 minutes
glide.ui.active.session.life_span	Maximum UI session lifetime	1440 minutes (24 hours)
glide.integrations.active.session.life_span	Maximum integration session lifetime	Must exceed inactive timeout

Integration Session Timeout

Since Fuji Patch 7, ServiceNow uses a separate, shorter timeout for integration sessions. This mitigates memory pressure from stateless API patterns that create new sessions per request.

The shorter integration timeout (typically 5 minutes) means sessions from API traffic expire quickly, preventing accumulation. This is beneficial for Squid integrations that disable cookie persistence.

Session Memory Impact

Each session object uses approximately 20KB of memory. With a 5-minute integration timeout:

Sessions per node ≈ (timeout_minutes × 60 × requests_per_second) ÷ node_count

Example: 5-minute timeout × 60 seconds × 5 req/sec ÷ 4 nodes = 375 sessions per node—well within acceptable limits.

Semaphore Architecture

ServiceNow controls concurrent API transactions through semaphore pools. Understanding these limits helps diagnose throughput issues.

API_INT Semaphore Pool

REST API requests use the API_INT semaphore pool:

Setting	Default	Description
Active threads	4	Concurrent requests processing
Queue depth	50	Requests waiting for a thread
Total capacity	54 per node	Maximum concurrent + queued

When the queue is full, additional requests receive HTTP 429 Too Many Requests.

Cross-Instance Capacity

Multi-node instances multiply capacity. A 4-node cluster handles:

• 16 concurrent API requests (4 × 4 active threads)
• 200 queued requests (4 × 50 queue depth)

MID Server competition

MID Server ECC queue polling consumes API_INT semaphores. Heavy Discovery or orchestration workloads compete directly with external API consumers for the same limited pool.

Modifying Semaphore Limits

Semaphore configuration changes require a ServiceNow HI ticket. Before requesting changes, document:

• Current utilization (see Monitoring)
• Business justification
• Expected throughput requirements

Rate Limit Rules

Rate limit rules control requests per hour per user or role. Unlike semaphores (concurrency), rate limits control throughput over time.

Checking Existing Rules

Navigate to System Web Services → REST → Rate Limit Rules to view configured limits.

Rate limits vary by instance size and licensing:

Instance Size	Typical Limit	Burst Capacity
Small	~25,000/hour	~7/second
Medium	~50,000/hour	~14/second
Large Enterprise	100,000+/hour	~28+/second

Creating a Squid Service Account Rule

If rate limits affect your Squid integration, consider a dedicated rule:

1. Navigate to System Web Services → REST → Rate Limit Rules
2. Click New
3. Configure:

Field	Value
REST API	Table API (or specific APIs)
User	squid_integration_user
Maximum requests	(appropriate limit)

Priority: Single user rules override role-based rules, which override global rules.

Propagation delay

Rate limit counts synchronize to the database every 30 seconds. Newly created rules may not take effect immediately.

Monitoring Platform Health

stats.do: Real-Time Semaphore Status

Access https://<instance>.service-now.com/stats.do to view current semaphore utilization:

**API_INT**
Available semaphores: 3
Queue depth: 0
Queue age: 0:00:00.000
Max queue depth: 44
Queue depth limit: 50
In use semaphores:
0:BDBC10AC47EA... #9484563 /api/now/v2/table/sys_history_line (API_INT-thread-2) (0:00:27.168)
Maximum transaction concurrency: 4
429 rejections: 4

Warning Thresholds

Metric	Warning Level	Action
Available semaphores	<25% of max	Investigate concurrent load
Queue depth	>50% of limit	Consider request throttling
Queue age	>30 seconds	Requests waiting too long
429 rejections	Any increase	Clients being rate-limited

xmlstats.do: Programmatic Monitoring

For automated monitoring, use https://<instance>.service-now.com/xmlstats.do?include=semaphores,transactions

Key Tables for Troubleshooting

Table	Purpose	Navigation
syslog_transaction	Transaction logs with timing	System Logs → Transactions
sys_rate_limit_violations	Rate limit violation records	—
sys_cluster_state	Node health including stats	—

Identifying Stuck Transactions

Long-running transactions visible in stats.do (e.g., durations like 29:30:07.809) may indicate issues:

1. Click the thread link in stats.do to view the stack trace
2. Refresh—if unchanged, the thread may be stuck
3. To terminate: System Diagnostics → Active Transactions (All Nodes), right-click and select Kill

Service Account Configuration

Dedicated service accounts for Squid integrations enable better troubleshooting and access control.

Creating a Squid Service Account

1. Create a new user (e.g., squid_integration_cmdb)
2. Assign required roles:
   • x_a46gh_squidx.rest — API access
   • x_a46gh_squidx.defaultAccess — Predefined configurations
   • Additional configuration-specific roles as needed
3. Do NOT assign admin role
4. Use local authentication (not LDAP/SSO) to avoid remote auth overhead

Naming Convention

squid_{purpose}_{system}

Examples:
- squid_cmdb_export
- squid_asset_sync_sccm
- squid_ci_monitoring

One Account Per Integration

Use separate service accounts for each integration system. Benefits:

• Isolated troubleshooting
• Emergency lockout capability
• Clear audit trail

Session Synchronization Reference

ServiceNow's session synchronization ("session synch") processes only one transaction per session at a time. This is why API clients should disable cookie persistence.

Session Queue Thresholds

Condition	Threshold	Result
Queued transactions	>10 per session (Tokyo+)	HTTP 202 returned
Transaction duration	>30 seconds	HTTP 202 for additional requests

HTTP 202 means the request was not processed—data is silently dropped.

System Property

Property	Purpose	Default
com.glide.request.max_waiters	Max queued transactions per session	10 (Tokyo+)

warning

Modifying max_waiters or queue size properties should be discussed with ServiceNow Support before implementation.

Maximum View Records

The system property glide.db.max_view_records controls the maximum number of rows returned when querying a database view. The default value is 10,000.

Source: Configuring the number of records to return

If this threshold is breached, Squid logs a warning and includes it in the response:

{
  "metadata": {
    ...,
    "row_count": 10001,
    "warnings": [
      "The current rowCount of 10001 is greater than the value set as system property 'glide.db.max_view_records': 10000. Records could be missing. Please check the amount of records you are expecting."
    ]
  },
  ...
}

If you see these warnings, increase the glide.db.max_view_records value or restrict your queries.

Squid intentionally does not sort or page data. What entities are returned if this threshold is breached is totally arbitrary.

Why no paging!?

Squid attempts to deliver as reliable and reproducible data as possible. Data in dynamic systems like ServiceNow is a moving target. Pagination implies that data is returned at different points in time and as pagination would only come into play with large data amounts every request/response cycle would take several minutes. As Squid is stateless, we would need to reexecute the query against the then current state of data.

Added data in a previous page? Get redundant data in the current page.

Removed data in a previous page? Data is missing in the current page.

Hey, Squid, you're inconsistent! As that is something we definitely do not want to do here, we do not support pagination.

Configuration Checklist

For optimal Squid performance, verify these settings:

• Transaction quota rule allows 900+ seconds for Squid API path
• Integration session timeout is configured (5 minutes typical)
• Dedicated service account created with appropriate roles
• Rate limit rules accommodate expected Squid throughput
• Monitoring alerts configured for semaphore exhaustion
• glide.db.max_view_records set high enough for your largest dataset (see above)
• x_a46gh_squidx.allowAclOverride set to true ( see Operations)
